Chapter 5 Repository Structure

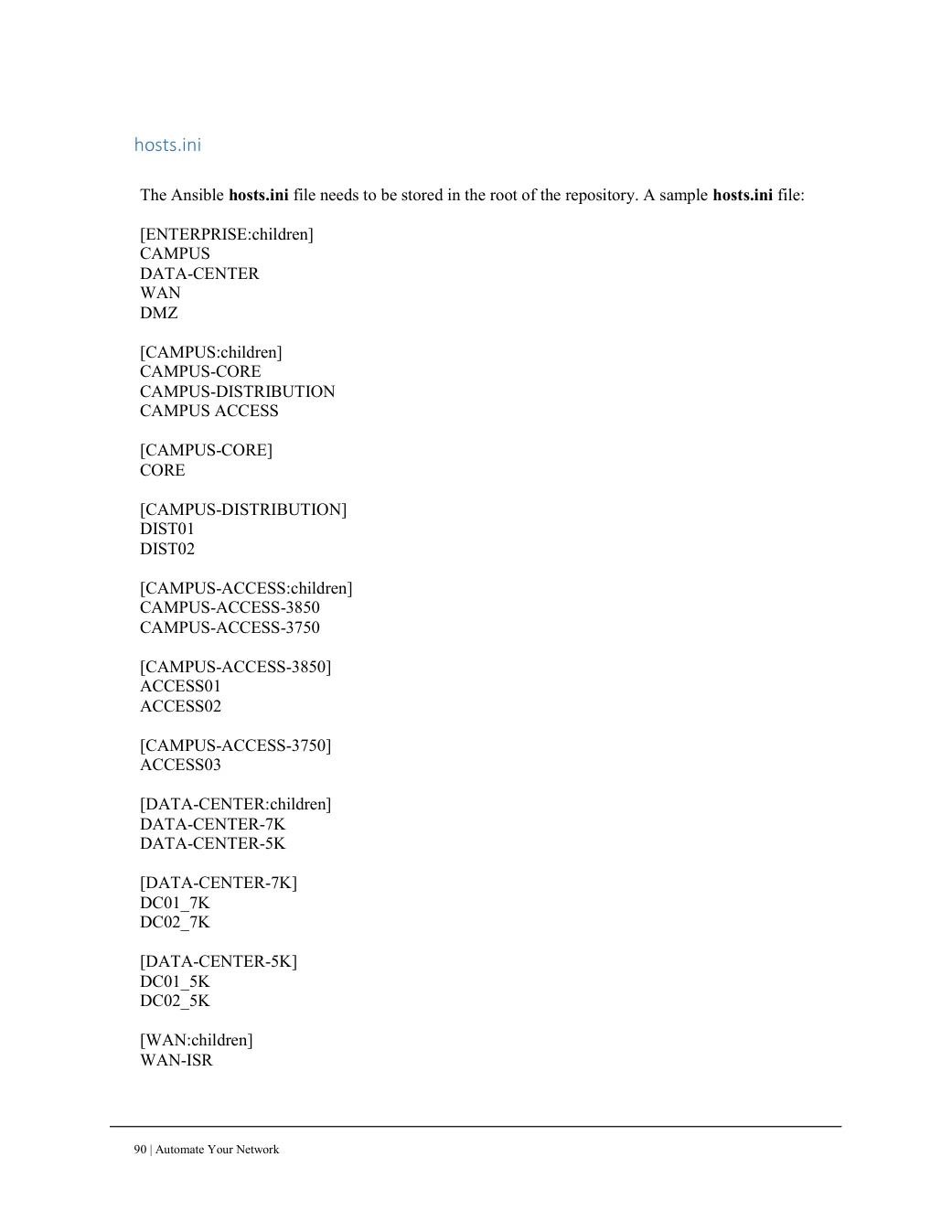

hosts.ini

The Ansible hosts.ini file needs to be stored in the root of the repository. A sample hosts.ini file: [ENTERPRISE:children] CAMPUS DATA-CENTER WAN DMZ [CAMPUS:children] CAMPUS-CORE CAMPUS-DISTRIBUTION CAMPUS ACCESS [CAMPUS-CORE] CORE [CAMPUS-DISTRIBUTION] DIST01 DIST02 [CAMPUS-ACCESS:children] CAMPUS-ACCESS-3850 CAMPUS-ACCESS-3750

[CAMPUS-ACCESS-3850] ACCESS01 ACCESS02

[CAMPUS-ACCESS-3750] ACCESS03 [DATA-CENTER:children] DATA-CENTER-7K DATA-CENTER-5K [DATA-CENTER-7K] DC01_7K DC02_7K [DATA-CENTER-5K] DC01_5K DC02_5K [WAN:children] WAN-ISR
