See the state.
Understand the network.

Turning network data into something you can explore has always been part of my work. From a command to a document, a mind map, a 3D scene—and now an agent that can build the world around it.

Try the interactive lab ↓Explore the work ↓
53 repositories57 videos10 articles
TOUCH THE DATA / SEE WHAT CHANGES

One network. More ways to see it.

A familiar command becomes a navigable mind map. Add neighbor relationships and it becomes a 3D topology. Drop an interface and see the same change across every view.

INTERACTIVE TEACHING LAB

Fictional sample network · runs in your browser

Both core uplinks are up. Gi0/2 is intentionally administratively down.

Inspect the source: show ip interface brief
core-01# show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol
GigabitEthernet0/0     192.0.2.1       YES manual up                    up
GigabitEthernet0/1     192.0.2.5       YES manual up                    up
GigabitEthernet0/2     unassigned      YES manual administratively down down
Loopback0              203.0.113.1     YES manual up                    up
core-01 interface state
InterfaceIP addressStatusProtocol
GigabitEthernet0/0192.0.2.1upup
GigabitEthernet0/1192.0.2.5upup
GigabitEthernet0/2unassignedadministratively downdown
Loopback0203.0.113.1upup
01 / MARKDOWN → MIND MAP

Explore the interface tree.

Select a branch circle to collapse or expand it. Drag to pan; use the buttons to zoom. The source table above provides the same interface data.

Enable JavaScript to explore the mind map. The source data and Markdown are available below.

See the Markdown behind the map
# core-01

## show ip interface brief

### GigabitEthernet0/0
- IP: 192.0.2.1
- Status: up
- Protocol: up

### GigabitEthernet0/1
- IP: 192.0.2.5
- Status: up
- Protocol: up

### GigabitEthernet0/2
- IP: unassigned
- Status: administratively down
- Protocol: down

### Loopback0
- IP: 203.0.113.1
- Status: up
- Protocol: up

Rendered with Markmap ↗ · Inspired by mind_nmap and business_ready.

02 / STATE + NEIGHBORS → TOPOLOGY

Step into the network.

Drag to orbit. Select a device or use the buttons below. Lines represent the sample neighbor links; moving lights illustrate connectivity, not measured traffic.

core-01dist-01dist-02access-01access-02
ILLUSTRATIVE NETWORK / 5 DEVICES

Launch the interactive scene, or explore every connection using the device buttons and link list.

core-01 · Core router

Two sample neighbor links: dist-01 and dist-02.

Inspect the neighbor links
  • core-01 GigabitEthernet0/0 → dist-01 · up
  • core-01 GigabitEthernet0/1 → dist-02 · up
  • dist-01 GigabitEthernet1/0/1 → access-01 · up
  • dist-02 GigabitEthernet1/0/1 → access-02 · up

Neighbor relationships are a separate, fictional CDP/LLDP-style fixture. The interface-brief command alone does not reveal a topology. The selected scenario changes only core-01’s link to dist-02; it does not simulate routing convergence.

FROM COMMAND OUTPUT TO SHARED UNDERSTANDING

Make network state useful.

MIND_NMAP / PYATS + MARKMAP

A network you can unfold.

Mind nMap turns parsed network state into Markdown and interactive mind maps. Explore a core–distribution–access hierarchy, then open the details of an individual device.

Explore mind_nmap ↗The original story →
BUSINESS_READY / MERLIN / DOCUMENTATION

One collection. Many outputs.

CSV, Markdown, HTML, and mind maps make the same network state useful to different audiences. Business Ready and Merlin connect the collection of data to documents people can actually navigate.

business_ready ↗Merlin ↗Watch the walkthrough →
THE NETWORK BECOMES A PLACE

From Blender to Unreal Engine.

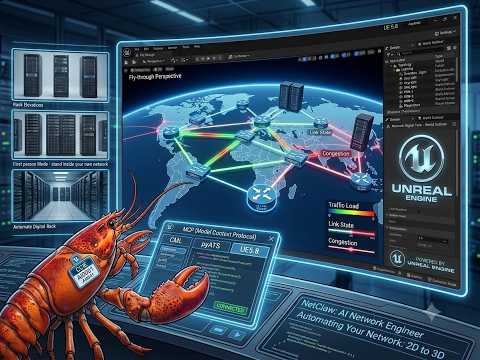

Original thumbnail from John’s NetClaw and Unreal Engine network demonstration
NETCLAW + UNREAL ENGINE 5

Walk through the topology.

My Unreal Engine experiment rebuilt a Cisco network as an interactive 3D world. It extends the same idea: use discovered network state to create a spatial view engineers can explore.

Watch the demonstration ↗Read the build story →
THREE.JS / AGENTS / INTERACTIVE NETWORKS

Bring the network
into the browser.

NetClaw’s Three.js operations dashboard, the 3D protocol views in WontYouBeMyNeighbour, and network-themed games explore different ways to interact with infrastructure. This site’s visitor globe is another working example.

Explore NetClaw →Try the visitor globe →3D protocol topology ↗War for Layer 4 ↗
MIND MAPS IN THE AGENT ERA

Ask. Collect. Visualize.

Markmap MCP and the Itential implementation bring the mind-map workflow into agent tooling. NetClaw adds diagrams, maps, and 3D scenes alongside its network engineering skills.

Markmap MCP ↗Itential Markmap MCP ↗Watch agent-generated mind maps ↗
THE OPEN-SOURCE COLLECTION

Find your next perspective.

All repositories →

Network tools, API experiments, and the wider mind-map collection—from Cisco platforms to space, art, and comics. Forks remain clearly labeled.
