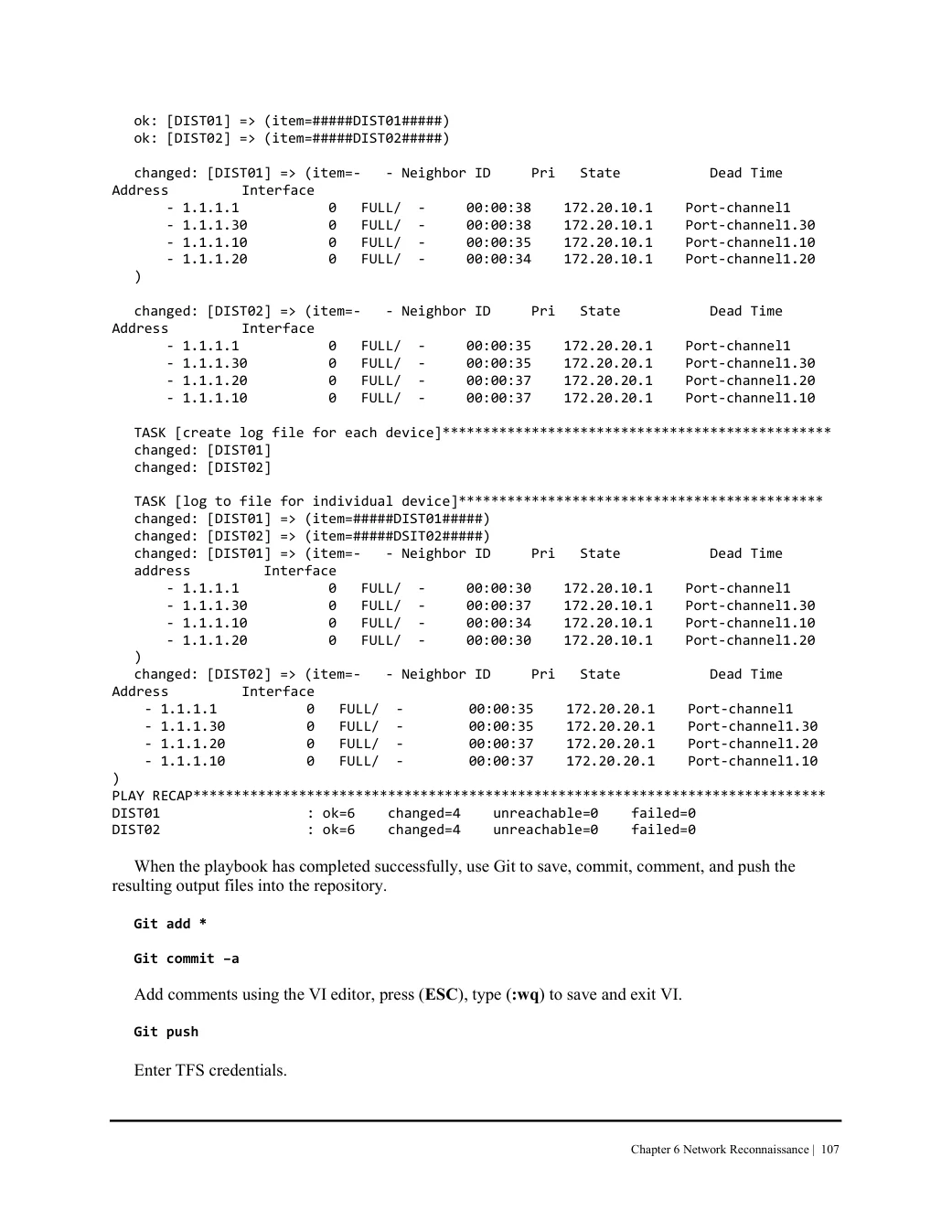

JOHN W. CAPOBIANCOPRINTED PAGE 107
ok: [DIST01] => (item=#####DIST01#####)
ok: [DIST02] => (item=#####DIST02#####)

changed: [DIST01] => (item=-   - Neighbor ID     Pri   State           Dead Time
Address         Interface
- 1.1.1.1           0   FULL/  -     00:00:38    172.20.10.1    Port-channel1
    - 1.1.1.30          0   FULL/  -     00:00:38    172.20.10.1    Port-channel1.30
    - 1.1.1.10          0   FULL/  -     00:00:35    172.20.10.1    Port-channel1.10
    - 1.1.1.20          0   FULL/  -     00:00:34    172.20.10.1    Port-channel1.20
)

changed: [DIST02] => (item=-   - Neighbor ID     Pri   State           Dead Time
Address         Interface
- 1.1.1.1           0   FULL/  -     00:00:35    172.20.20.1    Port-channel1
    - 1.1.1.30          0   FULL/  -     00:00:35    172.20.20.1    Port-channel1.30
    - 1.1.1.20          0   FULL/  -     00:00:37    172.20.20.1    Port-channel1.20
    - 1.1.1.10          0   FULL/  -     00:00:37    172.20.20.1    Port-channel1.10

TASK [create log file for each device]************************************************
changed: [DIST01]
changed: [DIST02]

TASK [log to file for individual device]*********************************************
changed: [DIST01] => (item=#####DIST01#####)
changed: [DIST02] => (item=#####DSIT02#####)
changed: [DIST01] => (item=-   - Neighbor ID     Pri   State           Dead Time
address         Interface
    - 1.1.1.1           0   FULL/  -     00:00:30    172.20.10.1    Port-channel1
    - 1.1.1.30          0   FULL/  -     00:00:37    172.20.10.1    Port-channel1.30
    - 1.1.1.10          0   FULL/  -     00:00:34    172.20.10.1    Port-channel1.10
    - 1.1.1.20          0   FULL/  -     00:00:30    172.20.10.1    Port-channel1.20
)
changed: [DIST02] => (item=-   - Neighbor ID     Pri   State           Dead Time
Address         Interface
    - 1.1.1.1           0   FULL/  -        00:00:35    172.20.20.1    Port-channel1
    - 1.1.1.30          0   FULL/  -        00:00:35    172.20.20.1    Port-channel1.30
    - 1.1.1.20          0   FULL/  -        00:00:37    172.20.20.1    Port-channel1.20
    - 1.1.1.10          0   FULL/  -        00:00:37    172.20.20.1    Port-channel1.10
)
PLAY RECAP******************************************************************************
DIST01                  : ok=6    changed=4    unreachable=0    failed=0
DIST02                  : ok=6    changed=4    unreachable=0    failed=0

When the playbook has completed successfully, use Git to save, commit, comment, and push the resulting output files into the repository.

Git add * Git commit –a Add comments using the VI editor, press (ESC), type (:wq) to save and exit VI. Git push Enter TFS credentials.
