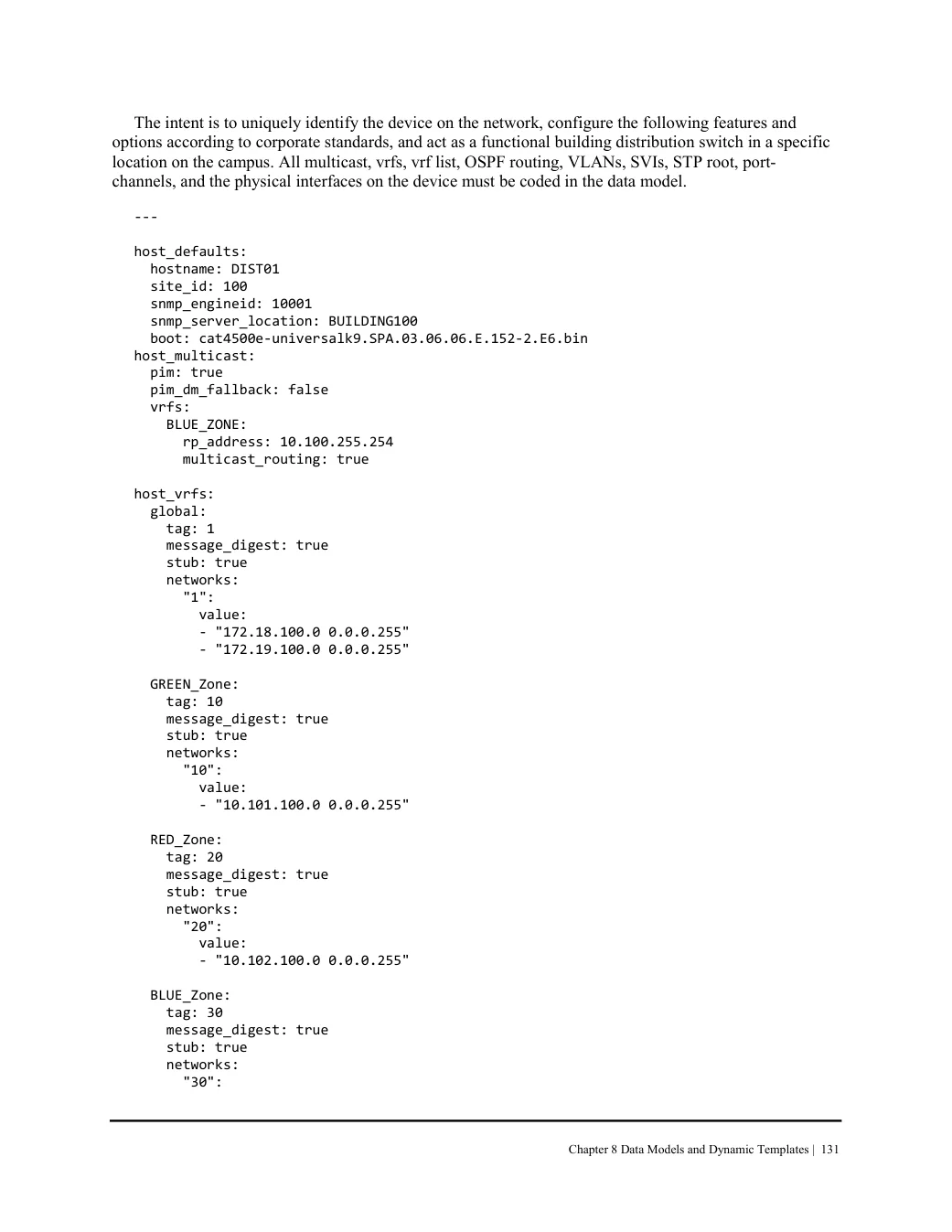

Chapter 8 Data Models and Dynamic Templates

The intent is to uniquely identify the device on the network, configure the following features and options according to corporate standards, and act as a functional building distribution switch in a specific location on the campus. All multicast, vrfs, vrf list, OSPF routing, VLANs, SVIs, STP root, port- channels, and the physical interfaces on the device must be coded in the data model.

---

host_defaults:
  hostname: DIST01
  site_id: 100
  snmp_engineid: 10001
  snmp_server_location: BUILDING100
  boot: cat4500e-universalk9.SPA.03.06.06.E.152-2.E6.bin
host_multicast:
  pim: true
  pim_dm_fallback: false
  vrfs:
    BLUE_ZONE:
      rp_address: 10.100.255.254
      multicast_routing: true

host_vrfs:
  global:
    tag: 1
    message_digest: true
    stub: true
    networks:
      "1":
        value:
        - "172.18.100.0 0.0.0.255"
        - "172.19.100.0 0.0.0.255"

  GREEN_Zone:
    tag: 10
    message_digest: true
    stub: true
    networks:
      "10":
        value:
        - "10.101.100.0 0.0.0.255"

  RED_Zone:
    tag: 20
    message_digest: true
    stub: true
    networks:
      "20":
        value:
        - "10.102.100.0 0.0.0.255"

  BLUE_Zone:
    tag: 30
    message_digest: true
    stub: true
    networks:
      "30":
