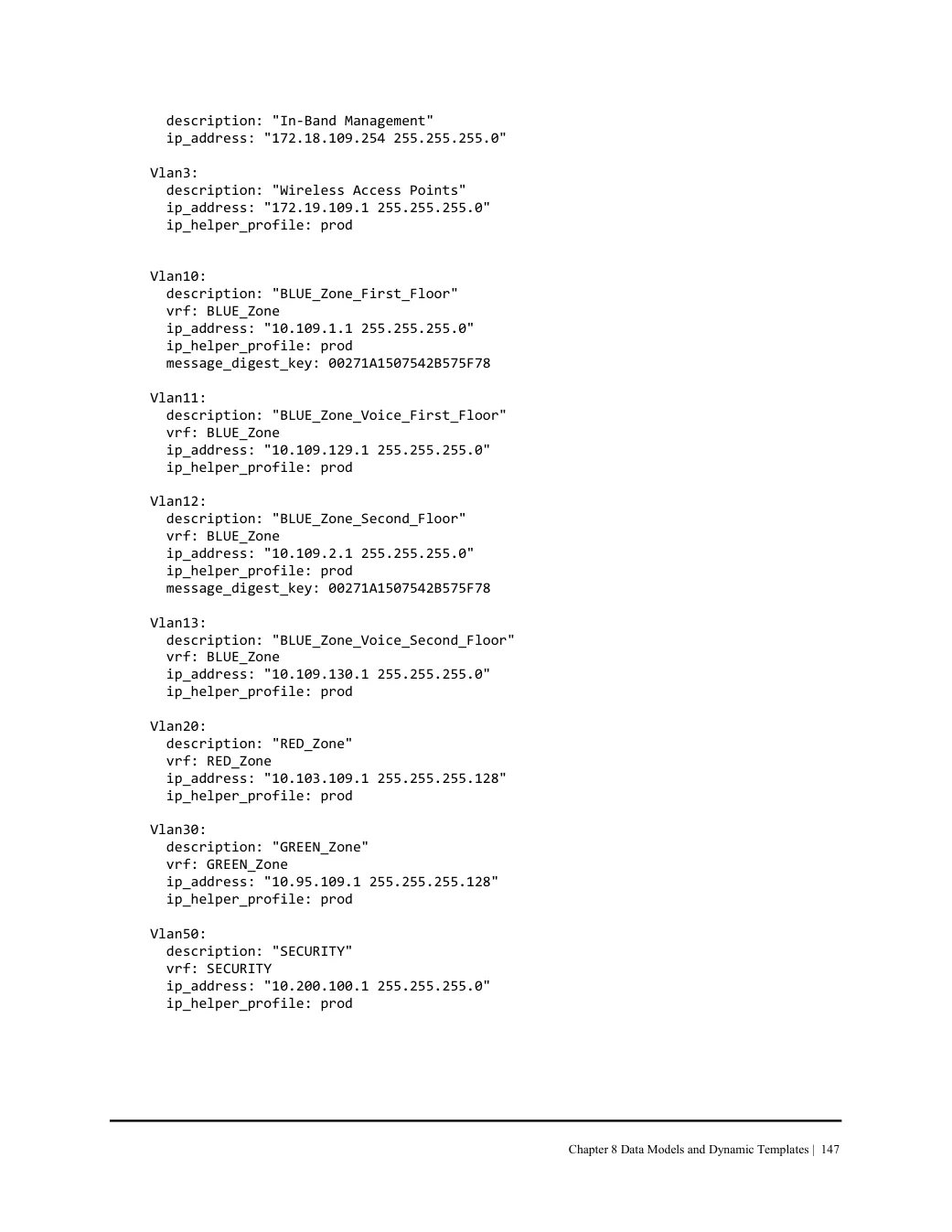

JOHN W. CAPOBIANCOPRINTED PAGE 147
description: "In-Band Management"
    ip_address: "172.18.109.254 255.255.255.0"

  Vlan3:
    description: "Wireless Access Points"
    ip_address: "172.19.109.1 255.255.255.0"
    ip_helper_profile: prod


  Vlan10:
    description: "BLUE_Zone_First_Floor"
    vrf: BLUE_Zone
    ip_address: "10.109.1.1 255.255.255.0"
    ip_helper_profile: prod
    message_digest_key: 00271A1507542B575F78

  Vlan11:
    description: "BLUE_Zone_Voice_First_Floor"
    vrf: BLUE_Zone
    ip_address: "10.109.129.1 255.255.255.0"
    ip_helper_profile: prod

  Vlan12:
    description: "BLUE_Zone_Second_Floor"
    vrf: BLUE_Zone
    ip_address: "10.109.2.1 255.255.255.0"
    ip_helper_profile: prod
    message_digest_key: 00271A1507542B575F78

  Vlan13:
    description: "BLUE_Zone_Voice_Second_Floor"
    vrf: BLUE_Zone
    ip_address: "10.109.130.1 255.255.255.0"
    ip_helper_profile: prod

  Vlan20:
    description: "RED_Zone"
    vrf: RED_Zone
    ip_address: "10.103.109.1 255.255.255.128"
    ip_helper_profile: prod

  Vlan30:
    description: "GREEN_Zone"
    vrf: GREEN_Zone
    ip_address: "10.95.109.1 255.255.255.128"
    ip_helper_profile: prod

  Vlan50:
    description: "SECURITY"
    vrf: SECURITY
    ip_address: "10.200.100.1 255.255.255.0"
    ip_helper_profile: prod
