Chapter 8 Data Models and Dynamic Templates
For diagrams, tables, or exact code formatting, .

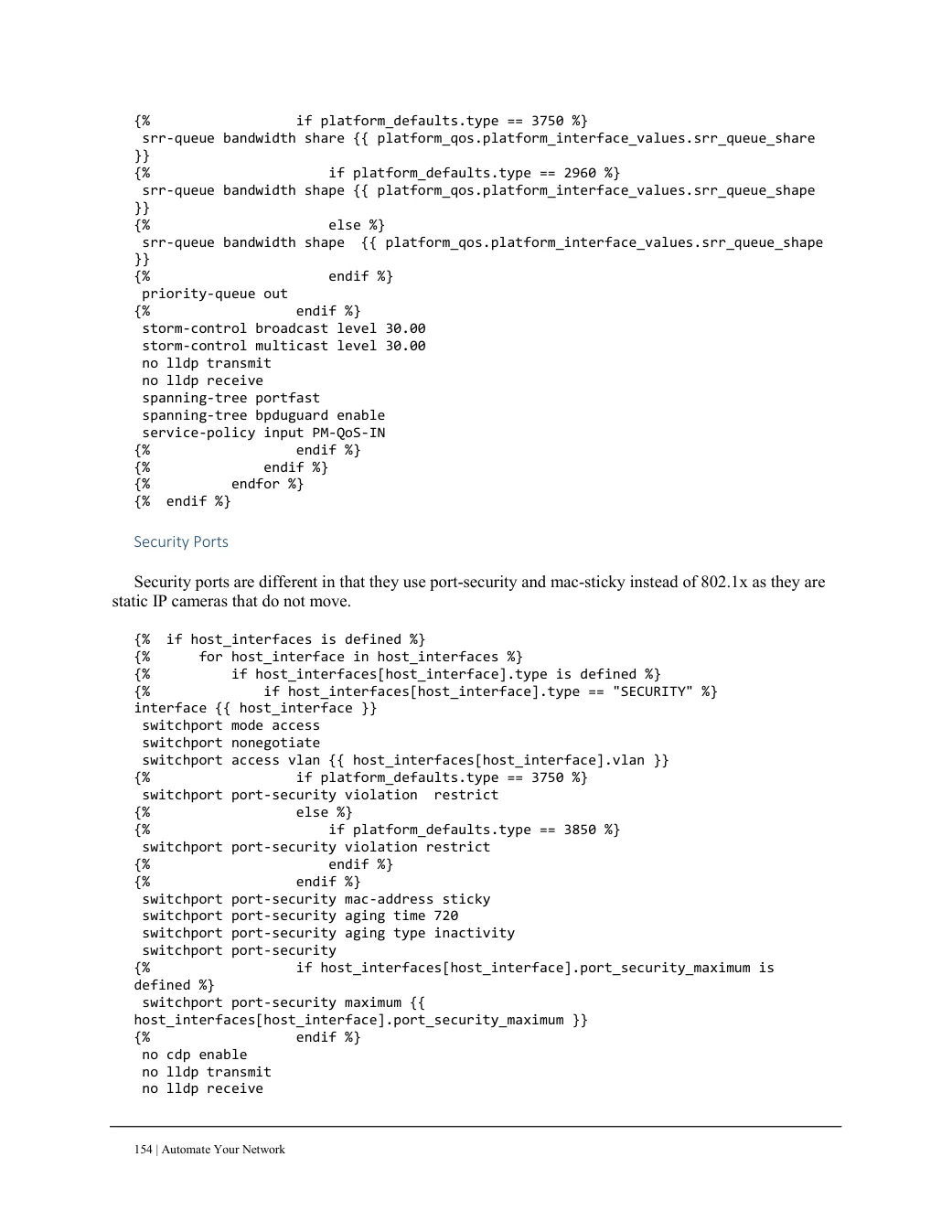

JOHN W. CAPOBIANCOPRINTED PAGE 154
{% if platform_defaults.type == 3750 %}
srr-queue bandwidth share {{ platform_qos.platform_interface_values.srr_queue_share
}}
{% if platform_defaults.type == 2960 %}
srr-queue bandwidth shape {{ platform_qos.platform_interface_values.srr_queue_shape
}}
{% else %}
srr-queue bandwidth shape {{ platform_qos.platform_interface_values.srr_queue_shape
}}
{% endif %}
priority-queue out
{% endif %}
storm-control broadcast level 30.00
storm-control multicast level 30.00
no lldp transmit
no lldp receive
spanning-tree portfast
spanning-tree bpduguard enable
service-policy input PM-QoS-IN
{% endif %}
{% endif %}
{% endfor %}
{% endif %}
Security Ports
Security ports are different in that they use port-security and mac-sticky instead of 802.1x as they are
static IP cameras that do not move.{% if host_interfaces is defined %}
{% for host_interface in host_interfaces %}
{% if host_interfaces[host_interface].type is defined %}
{% if host_interfaces[host_interface].type == "SECURITY" %}
interface {{ host_interface }}
switchport mode access
switchport nonegotiate
switchport access vlan {{ host_interfaces[host_interface].vlan }}
{% if platform_defaults.type == 3750 %}
switchport port-security violation restrict
{% else %}
{% if platform_defaults.type == 3850 %}
switchport port-security violation restrict
{% endif %}
{% endif %}
switchport port-security mac-address sticky
switchport port-security aging time 720
switchport port-security aging type inactivity
switchport port-security
{% if host_interfaces[host_interface].port_security_maximum is
defined %}
switchport port-security maximum {{
host_interfaces[host_interface].port_security_maximum }}
{% endif %}
no cdp enable
no lldp transmit
no lldp receive
