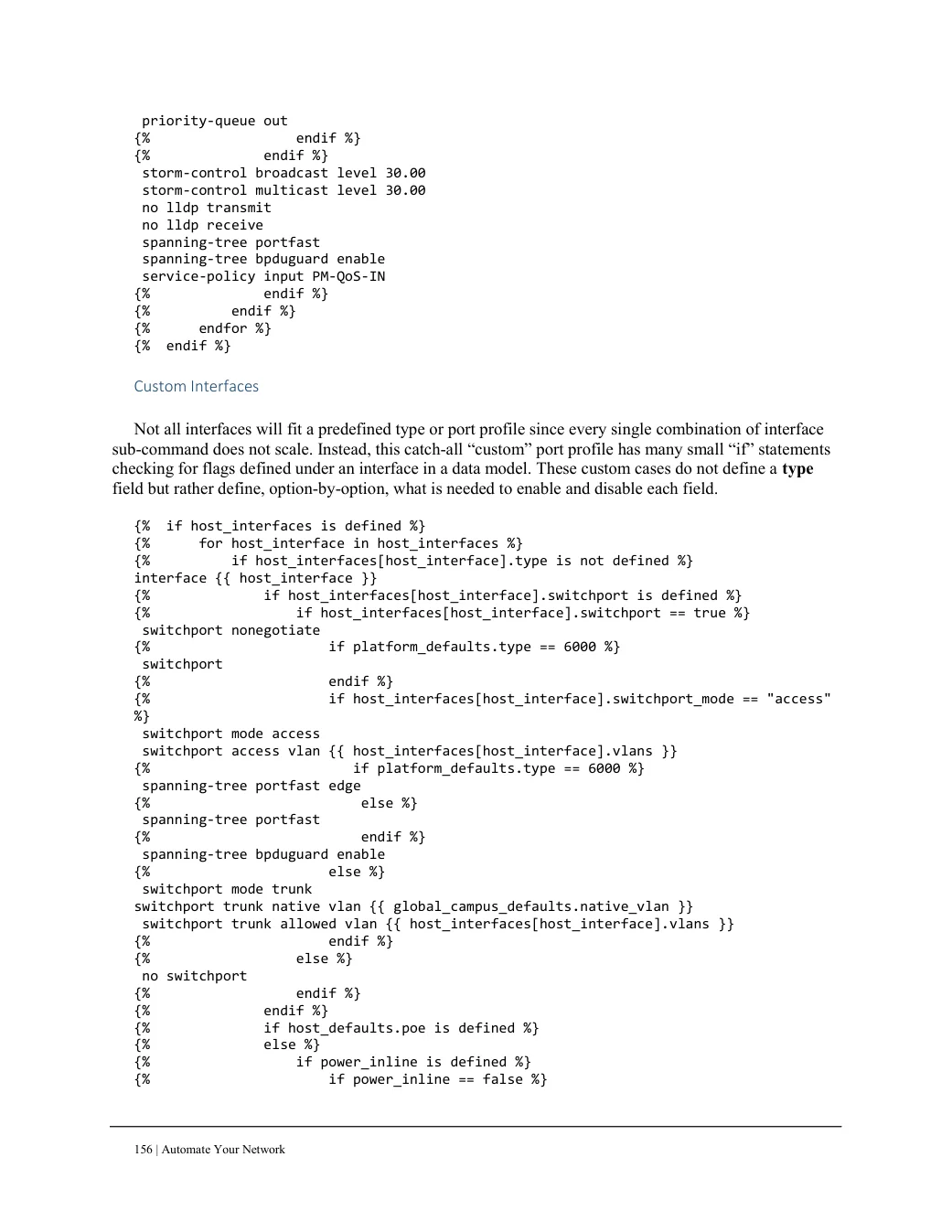

Chapter 8 Data Models and Dynamic Templates

priority-queue out
{%                  endif %}
{%              endif %}
 storm-control broadcast level 30.00
 storm-control multicast level 30.00
 no lldp transmit
 no lldp receive
 spanning-tree portfast
 spanning-tree bpduguard enable
 service-policy input PM-QoS-IN
{%              endif %}
{%          endif %}
{%      endfor %}
{%  endif %}

Custom Interfaces

Not all interfaces will fit a predefined type or port profile since every single combination of interface
sub-command does not scale. Instead, this catch-all “custom” port profile has many small “if” statements
checking for flags defined under an interface in a data model. These custom cases do not define a type
field but rather define, option-by-option, what is needed to enable and disable each field.

{%  if host_interfaces is defined %}
{%      for host_interface in host_interfaces %}
{%          if host_interfaces[host_interface].type is not defined %}
interface {{ host_interface }}
{%              if host_interfaces[host_interface].switchport is defined %}
{%                  if host_interfaces[host_interface].switchport == true %}
 switchport nonegotiate
{%                      if platform_defaults.type == 6000 %}
 switchport
{%                      endif %}
{%                      if host_interfaces[host_interface].switchport_mode == "access"
%}
 switchport mode access
 switchport access vlan {{ host_interfaces[host_interface].vlans }}
{%                         if platform_defaults.type == 6000 %}
 spanning-tree portfast edge
{%                          else %}
 spanning-tree portfast
{%                          endif %}
 spanning-tree bpduguard enable
{%                      else %}
 switchport mode trunk
switchport trunk native vlan {{ global_campus_defaults.native_vlan }}
 switchport trunk allowed vlan {{ host_interfaces[host_interface].vlans }}
{%                      endif %}
{%                  else %}
 no switchport
{%                  endif %}
{%              endif %}
{%              if host_defaults.poe is defined %}
{%              else %}
{%                  if power_inline is defined %}
{%                      if power_inline == false %}
