Chapter 7 Tactical Playbooks

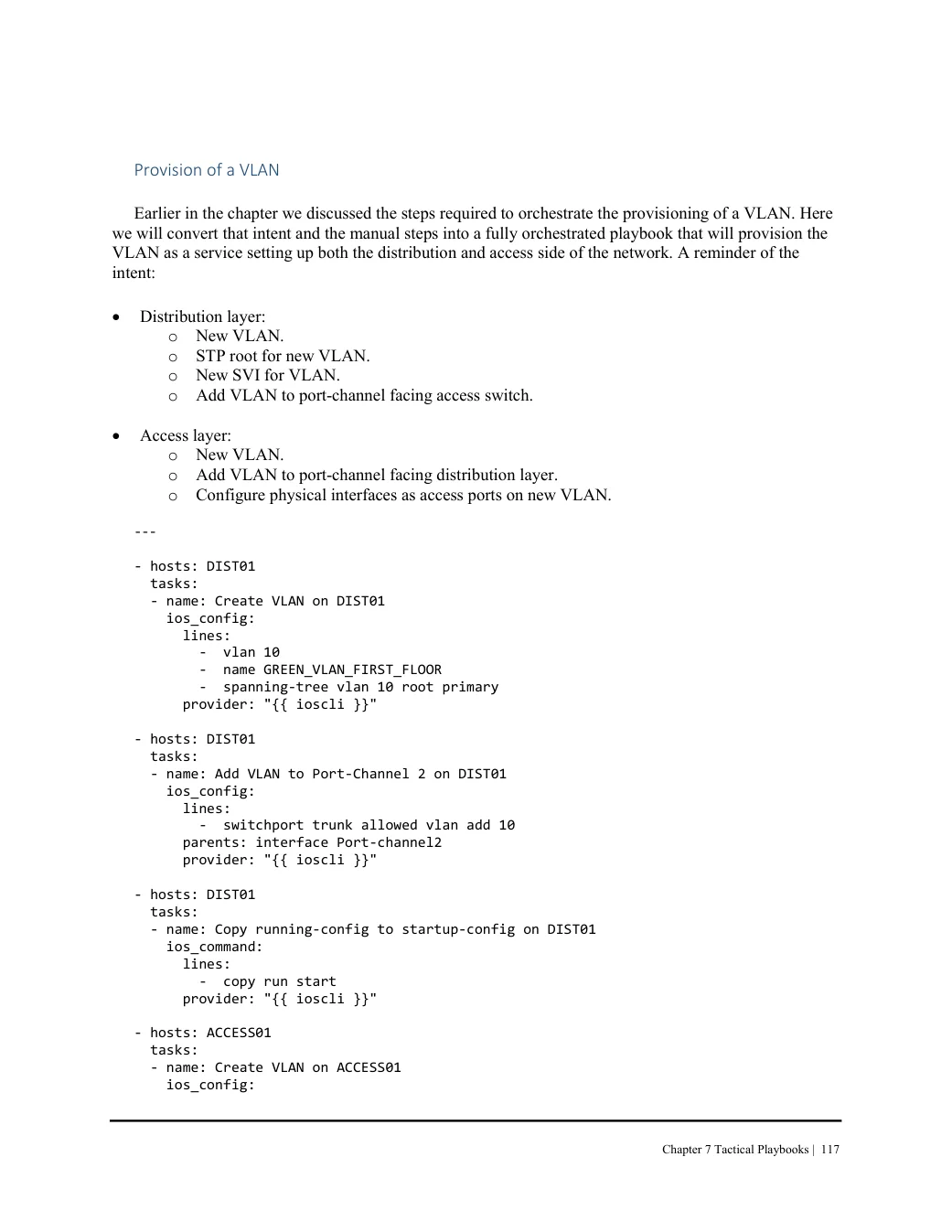

Provision of a VLAN Earlier in the chapter we discussed the steps required to orchestrate the provisioning of a VLAN. Here we will convert that intent and the manual steps into a fully orchestrated playbook that will provision the VLAN as a service setting up both the distribution and access side of the network. A reminder of the intent:

 Distribution layer:

o New VLAN. o STP root for new VLAN. o New SVI for VLAN. o Add VLAN to port-channel facing access switch.

 Access layer:

o New VLAN.
o Add VLAN to port-channel facing distribution layer.
o Configure physical interfaces as access ports on new VLAN.

---

- hosts: DIST01
  tasks:
  - name: Create VLAN on DIST01
    ios_config:
      lines:
        -  vlan 10
        -  name GREEN_VLAN_FIRST_FLOOR
        -  spanning-tree vlan 10 root primary
      provider: "{{ ioscli }}"

- hosts: DIST01
  tasks:
  - name: Add VLAN to Port-Channel 2 on DIST01
    ios_config:
      lines:
        -  switchport trunk allowed vlan add 10
      parents: interface Port-channel2
      provider: "{{ ioscli }}"

- hosts: DIST01
  tasks:
  - name: Copy running-config to startup-config on DIST01
    ios_command:
      lines:
        -  copy run start
      provider: "{{ ioscli }}"

- hosts: ACCESS01
  tasks:
  - name: Create VLAN on ACCESS01
    ios_config:
