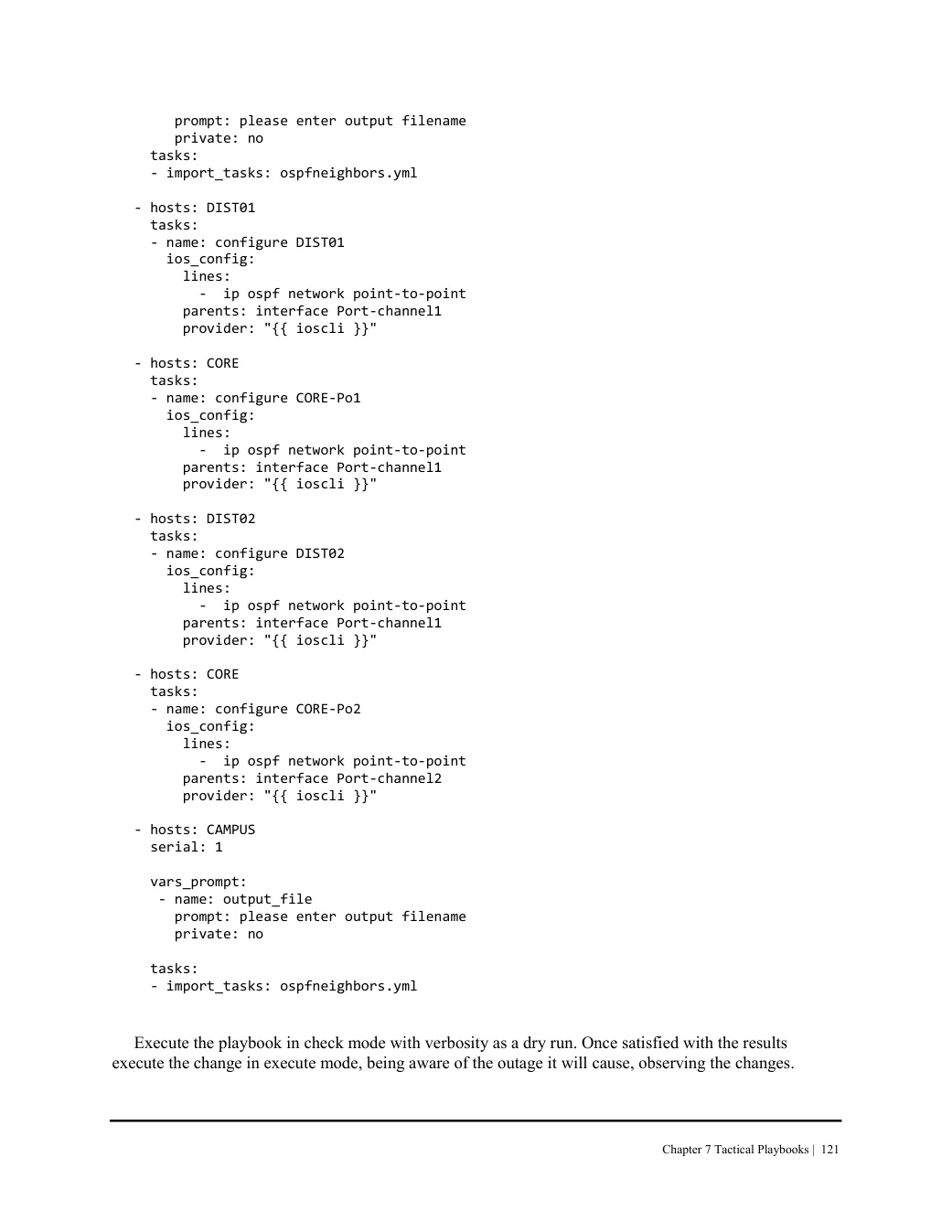

JOHN W. CAPOBIANCOPRINTED PAGE 121
prompt: please enter output filename
private: no
tasks:
- import_tasks: ospfneighbors.yml
- hosts: DIST01
tasks:
- name: configure DIST01
ios_config:
lines:
- ip ospf network point-to-point
parents: interface Port-channel1
provider: "{{ ioscli }}"
- hosts: CORE
tasks:
- name: configure CORE-Po1
ios_config:
lines:
- ip ospf network point-to-point
parents: interface Port-channel1
provider: "{{ ioscli }}"
- hosts: DIST02
tasks:
- name: configure DIST02
ios_config:
lines:
- ip ospf network point-to-point
parents: interface Port-channel1
provider: "{{ ioscli }}"
- hosts: CORE
tasks:
- name: configure CORE-Po2
ios_config:
lines:
- ip ospf network point-to-point
parents: interface Port-channel2
provider: "{{ ioscli }}"
- hosts: CAMPUS
serial: 1
vars_prompt:
- name: output_file
prompt: please enter output filename
private: no
tasks:
- import_tasks: ospfneighbors.ymlExecute the playbook in check mode with verbosity as a dry run. Once satisfied with the results execute the change in execute mode, being aware of the outage it will cause, observing the changes.
