Chapter 8 Data Models and Dynamic Templates

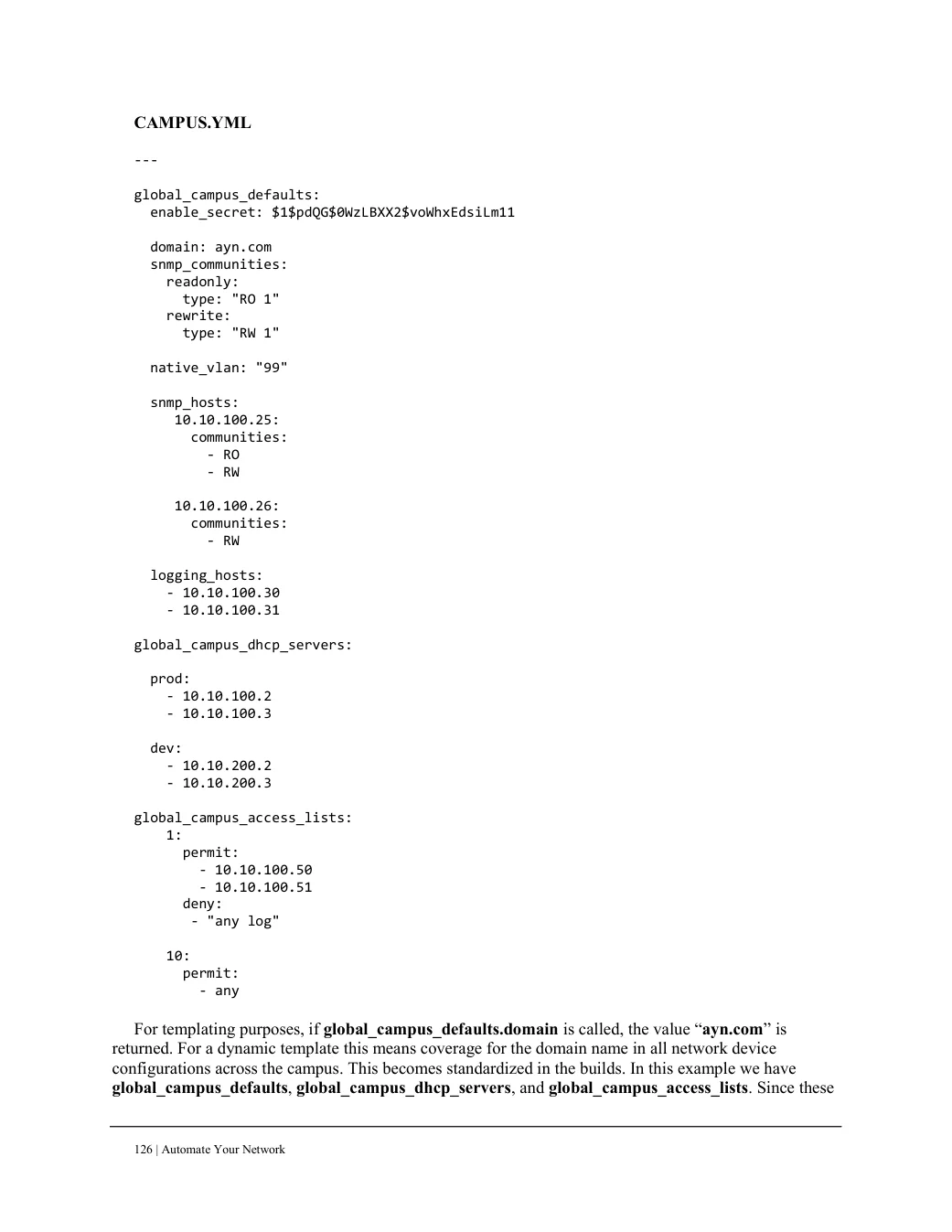

CAMPUS.YML

---

global_campus_defaults:
  enable_secret: $1$pdQG$0WzLBXX2$voWhxEdsiLm11

  domain: ayn.com
  snmp_communities:
    readonly:
      type: "RO 1"
    rewrite:
      type: "RW 1"

  native_vlan: "99"

  snmp_hosts:
     10.10.100.25:
       communities:
         - RO
         - RW

     10.10.100.26:
       communities:
         - RW

  logging_hosts:
    - 10.10.100.30
    - 10.10.100.31

global_campus_dhcp_servers:

  prod:
    - 10.10.100.2
    - 10.10.100.3

  dev:
    - 10.10.200.2
    - 10.10.200.3

global_campus_access_lists:
    1:
      permit:
        - 10.10.100.50
        - 10.10.100.51
      deny:
       - "any log"

    10:
      permit:
        - any

For templating purposes, if global_campus_defaults.domain is called, the value “ayn.com” is
returned. For a dynamic template this means coverage for the domain name in all network device
configurations across the campus. This becomes standardized in the builds. In this example we have
global_campus_defaults, global_campus_dhcp_servers, and global_campus_access_lists. Since these
