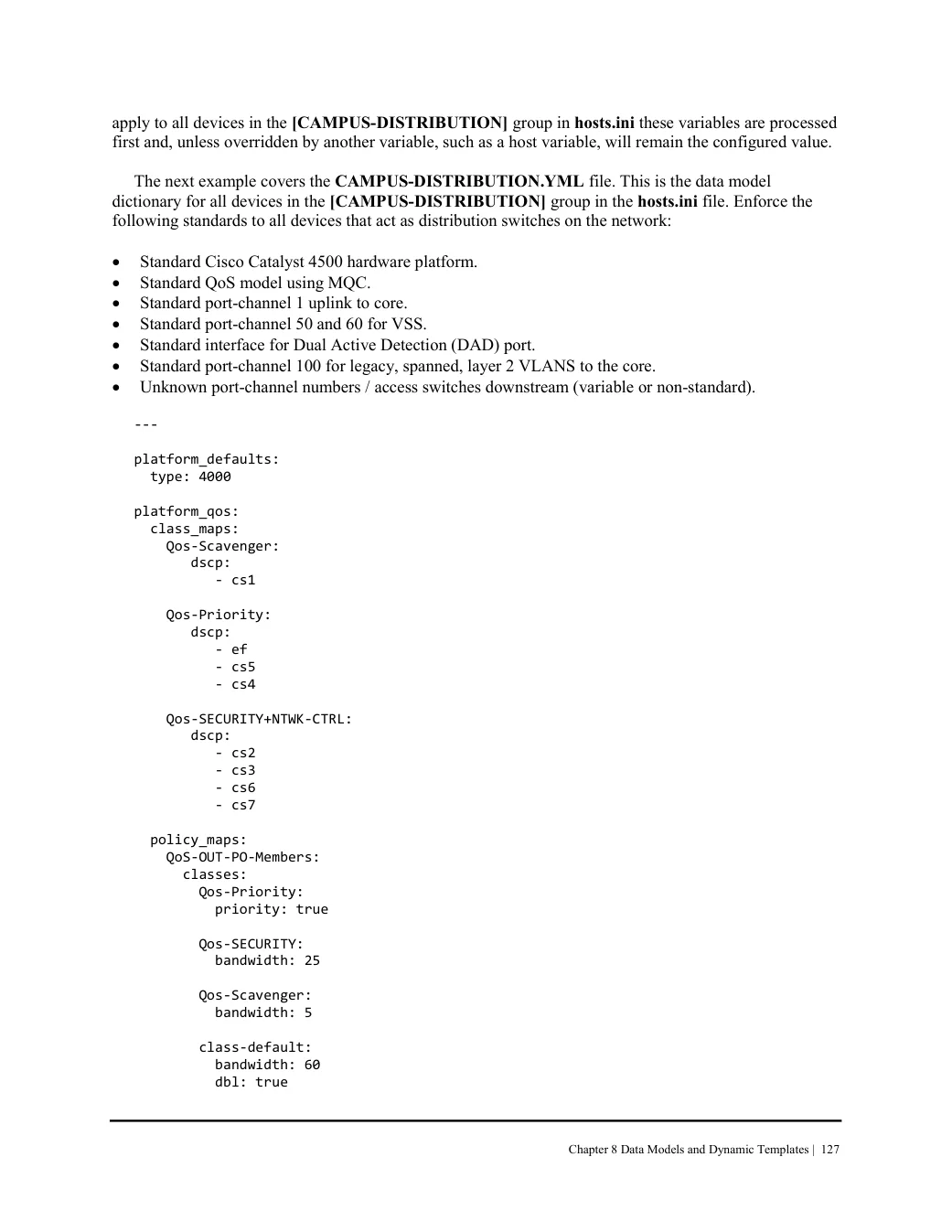

apply to all devices in the [CAMPUS-DISTRIBUTION] group in hosts.ini these variables are processed first and, unless overridden by another variable, such as a host variable, will remain the configured value.

The next example covers the CAMPUS-DISTRIBUTION.YML file. This is the data model dictionary for all devices in the [CAMPUS-DISTRIBUTION] group in the hosts.ini file. Enforce the following standards to all devices that act as distribution switches on the network:

 Standard Cisco Catalyst 4500 hardware platform.  Standard QoS model using MQC.  Standard port-channel 1 uplink to core.  Standard port-channel 50 and 60 for VSS.  Standard interface for Dual Active Detection (DAD) port.  Standard port-channel 100 for legacy, spanned, layer 2 VLANS to the core.  Unknown port-channel numbers / access switches downstream (variable or non-standard).

---

platform_defaults:
  type: 4000

platform_qos:
  class_maps:
    Qos-Scavenger:
       dscp:
          - cs1

    Qos-Priority:
       dscp:
          - ef
          - cs5
          - cs4

    Qos-SECURITY+NTWK-CTRL:
       dscp:
          - cs2
          - cs3
          - cs6
          - cs7

  policy_maps:
    QoS-OUT-PO-Members:
      classes:
        Qos-Priority:
          priority: true

        Qos-SECURITY:
          bandwidth: 25

        Qos-Scavenger:
          bandwidth: 5

        class-default:
          bandwidth: 60
          dbl: true
