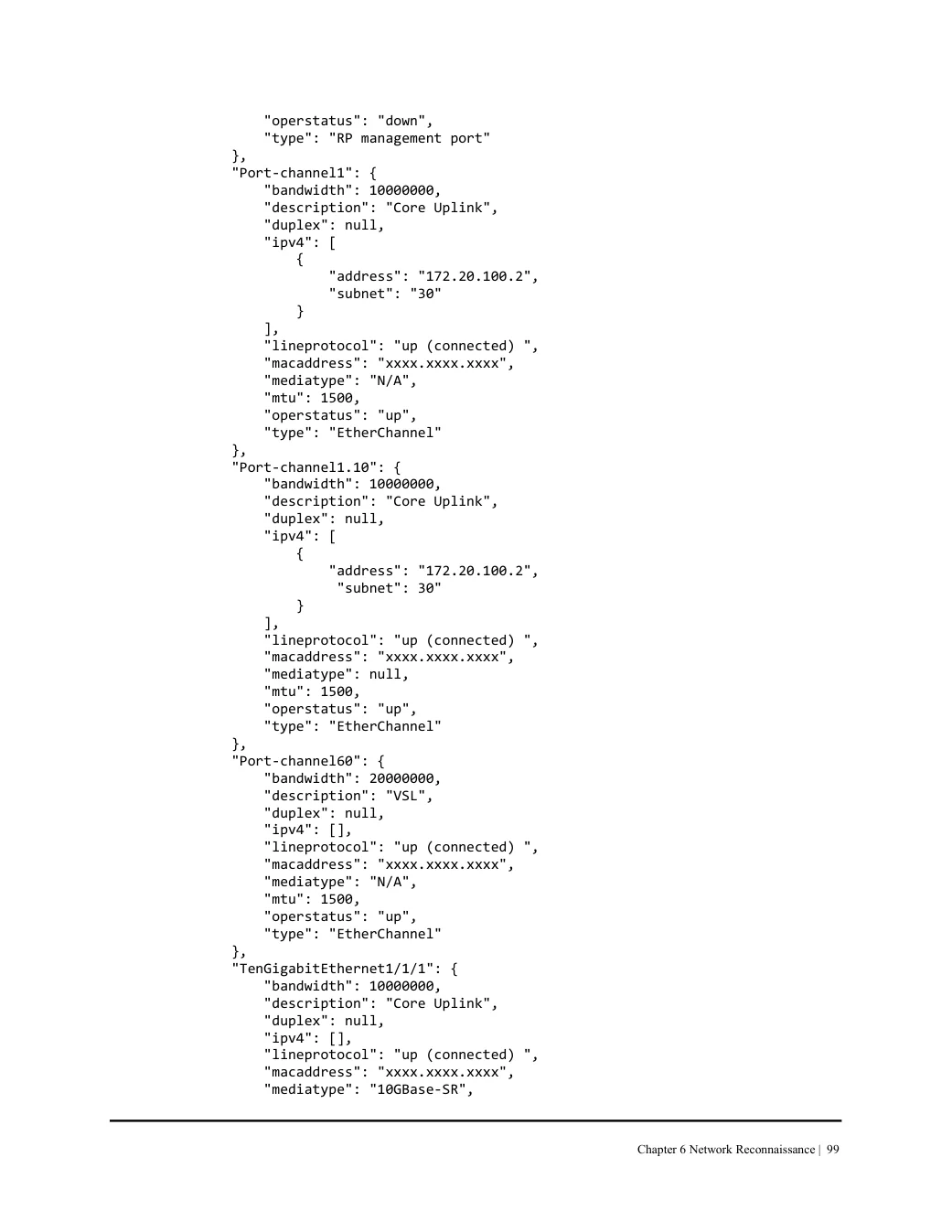

JOHN W. CAPOBIANCOPRINTED PAGE 99
"operstatus": "down",
"type": "RP management port"
},
"Port-channel1": {
"bandwidth": 10000000,
"description": "Core Uplink",
"duplex": null,
"ipv4": [
{
"address": "172.20.100.2",
"subnet": "30"
}
],
"lineprotocol": "up (connected) ",
"macaddress": "xxxx.xxxx.xxxx",
"mediatype": "N/A",
"mtu": 1500,
"operstatus": "up",
"type": "EtherChannel"
},
"Port-channel1.10": {
"bandwidth": 10000000,
"description": "Core Uplink",
"duplex": null,
"ipv4": [
{
"address": "172.20.100.2",
"subnet": 30"
}
],
"lineprotocol": "up (connected) ",
"macaddress": "xxxx.xxxx.xxxx",
"mediatype": null,
"mtu": 1500,
"operstatus": "up",
"type": "EtherChannel"
},
"Port-channel60": {
"bandwidth": 20000000,
"description": "VSL",
"duplex": null,
"ipv4": [],
"lineprotocol": "up (connected) ",
"macaddress": "xxxx.xxxx.xxxx",
"mediatype": "N/A",
"mtu": 1500,
"operstatus": "up",
"type": "EtherChannel"
},
"TenGigabitEthernet1/1/1": {
"bandwidth": 10000000,
"description": "Core Uplink",
"duplex": null,
"ipv4": [],
"lineprotocol": "up (connected) ",
"macaddress": "xxxx.xxxx.xxxx",
"mediatype": "10GBase-SR",
